PrimusLine®

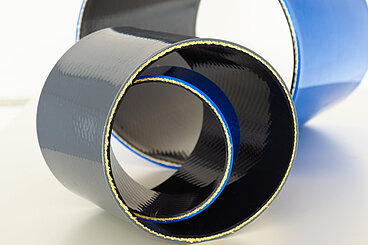

Multi-layer characteristic

Outer Layer

  • Abrasion-resistant PE sheath

Kevlar® Fabric

  • Seamless, woven aramid fibres as static load-bearing layer
  • Single-layer or double-layer fabric design

Inner Layer

  • Media-specific based on PE or TPU







Multi-layered Structure
for a Maximum of Efficiency

Flexibility with extremely high material strength - mutually-opposing properties which Primus Line® unites thanks to its incomparable structure:


Its multi-layer structure, as well as the small wall-thickness, make Primus Line® the ideal system for the trenchless rehabilitation of pressure pipes: Stable and secure, with diverse areas of application and high levels of efficiency.

Bend traversing capability to 45°
and high-performance connectors

Primus Line connectors

Ailing lines present a lot of pipe rehab systems without current solutions. Not only the installation in existing line networks, but also existing bends and branches challenge most processes right to their limits.







On the other hand, Primus Line® is especially suitable for the rehabilitation of ageing pipelines with multiple of bends: As well as the simple installation in an existing line network, Primus Line® masters bends of up to 45° without any problems. In particular, the connection technology developed specially for the system enables a fast installation.

Stable connectors

prod
back
Back

By means of special connectors, the Primus Liner is connected simply to
an existing pipe and the line network. According to requirements, the
connector can be equipped with either a flange or welding end, and
enables the connection to adapter pieces, T-pieces and valves.



Connector with Welded Ends
Primus Line Connector with Flange
1) Host pipe 1) Host pipe
2) Connector with welded ends 2)Connector with flange
3) Host pipe3) Fitting piece
4) Primus Liner4)Host pipe
5) Welded seam5) Primus Liner
6) Flange

In case of the connectors, a differentiation is made between connectors for medium and high pressure and low-pressure connectors:

The connector suitable for medium and high pressure (from DN 150 to DN 500) consists of an exterior sleeve with deformation-capable steel jacket on the inner side and a formed inside sleeve. A resin, which is pressed in via a valve on the exterior sleeve, acts on the steel jacket and forces thus the Primus liner into the contours of the inside sleeve. After hardening of the resin, a permanent, tension-resistant connection is formed as a result.

The installation of the low pressure termination fittings (from DN 150 to DN 300) is performed mechanically (compression style fitting). The Primus Line double-sided flange piece is installed at a corresponding flange at the host pipe. If there is not a flange available, a mechanical flange coupling adaptor can be used to create a flange on the host pipe. A plastic contoured sleeve is installed onto the liner. The connector core with corresponding contours is inserted. With mechanical force, the connector core is inserted and a durable and pull-proof connection is achieved. Since it is a mechanical installation, a leak test can be performed right after the installation. The second flange of the double-sided flange piece can be used to integrate a hydrant, service connection or valve.

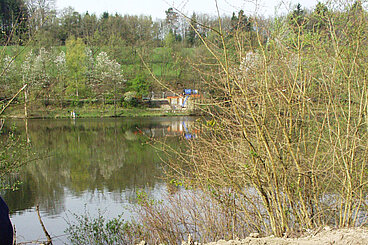

Simple solution for inverted siphons
and difficult special projects

A special construction design and/or routing, at least four bends between 0 and 45° and a fast restart of operation - these are only some of the additional requirements which result in case of inverted siphon rehabilitation.

Not only in the special case of the inverted siphon, but also in other difficult rehabilitation situations, Primus Line® convinces with its positive characteristics, such as flexibility, bend traversing capability and simple installation, and thus offers the optimal solution for special projects such as:



  • Inverted siphons
  • Bypasses
  • Pipelines at airports
  • Chemical plants & refiners pipelines
  • Pipelines at military bases

Large lengths guarantee cost-effectiveness
in case of installation and transport

Both with regard to situations which concern the installation of the liner, as well as in case of transport, Primus Line® offers a significant characteristic which has a dramatic effect on the cost-effectiveness: the length.

On the one hand, Primus Line® makes possible unusually large entry lengths of 2,500 m, which reduce the necessity of construction pits to a minimum and guarantee the lowest possible impact on the environment.

On the other hand, Primus Line® scores with large liner lengths, which are available in one piece on a transport drum: Drum sizes of up to 11 m enable the transport of up to 4,500 m. Together with a drum design, which is  especially suitable for international dispatch by sea and air freight, Primus Line® achieves minimum logistic costs and thus offers an attractive overall concept using advanced rehabilitation technology, simple installation and well-designed logistics.

Technical Details

Back

Here you can find the most important technical details about Primus Line® Further details are in the Primus Line® Product Portfolio (bar) /Primus Line® Product Portfolio (psi)



Nominal Sizes 150 - 500   DN
Operating pressure max. (water) 55 bar Single-layer fabric
depends on diameter 76 bar Double-layer fabric
Operating pressure max. (gas) 34 bar Single-layer fabric
depends on diameter 46 bar Double-layer fabric
Bursting pressure max. 137 bar Single-layer fabric
depends on diameter 190 bar Double-layer fabric
Wall thickness 6,0 mm Single-layer fabric
8,0 mm Double-layer fabric
Weight (from / to) 2,0 - 8,5 kg/m Single-layer fabric
depends on diameter 4,0 - 8,7 kg/m Double-layer fabric
Abrasion resistance (DIN 53516) 10,5 mm³
Insertion length max. 2.500 m
Hose length per drum max.
depends on diameter
up to 4.500 m
Bendability up to 45 degree
Bend radii 5 D
Continuous operating temperature up to 50 °C
Service life duration 50 years

Constant capacities for a high level
of performance on a long-term basis

imgrohr

Technical data

High-performance pipes and optimum flow-through characteristics are determining factors for the efficiency of line networks and the rapid as well as reliable transport of different media.

Many rehabilitation procedures reduce the pipe section so much that a serious reduction of the hydraulic capacity results.

Primus Line® acts in a different way here: Due to the small wall-thickness of the composite pipe of 6.0 or 8.0 mm, the cross-sectional loss is minimal and the capacity remains approximately constant. In addition, by the employment of optimal materials, Primus Line® guarantees improved flow-through characteristics in the line.

Unlike technologies with considerable performance losses, Primus Line® achieves a renewal of the pipes: Primus Line® ensures the long-term supply and in addition extends the service life of the pipes by at least 50 years.

Technical Details

Back

Here you can find the most important technical details about Primus Line® Further details are in the Primus Line® Product Portfolio (bar) /Primus Line® Product Portfolio (psi)



Nominal Sizes 150 - 500   DN
Operating pressure max. (water) 55 bar Single-layer fabric
depends on diameter 76 bar Double-layer fabric
Operating pressure max. (gas) 34 bar Single-layer fabric
depends on diameter 46 bar Double-layer fabric
Bursting pressure max. 137 bar Single-layer fabric
depends on diameter 190 bar Double-layer fabric
Wall thickness 6,0 mm Single-layer fabric
8,0 mm Double-layer fabric
Weight (from / to) 2,0 - 8,5 kg/m Single-layer fabric
depends on diameter 4,0 - 8,7 kg/m Double-layer fabric
Abrasion resistance (DIN 53516) 10,5 mm³
Insertion length max. 2.500 m
Hose length per drum max.
depends on diameter
up to 4.500 m
Bendability up to 45 degree
Bend radii 5 D
Continuous operating temperature up to 50 °C
Service life duration 50 years

Taking care of sensitive environments
and protecting living environments

installation steps

Small construction pits, short rehabilitation times and the low level of impact on the environment, make Primus Line® the ideal technology for the rehabilitation of defective lines in sensitive environments.

Regardless of whether it involves high traffic streets, nature reserves or sites difficult to access - it is just in these cases where Primus Line® is exactly the right solution. Without any large-scale impacts on the environment, pipelines can be renovated simply, rapidly and securely and put into operation again within the shortest time. As well as economic aspects, considerable advantages therefore arise for persons and nature:

  • No disturbance in the street, railway line or shipping traffic
  • Avoidance of traffic jams
  • Decrease of noise and emission pollution
  • Decrease of excavation work
  • Low level of impairment to existing building substance
  • Sustainability through the use of the existing infrastructure (old piping)
  • Low impact in landscapes and protection areas
  • Care of plants and species


The special suitability for sensitive environments results from the special installation method of Primus Line® and its simple handling. The installation is possible in the most confined spaces and with a low level of machine employment.





Installation Steps

An installation of the Primus Liner can be realised within the shortest time and is simply structured. The installation is implemented in several steps:

1Operational shut-down of the pipeline to be renewed
2Pit construction, cutting and drainage of the pipes
3Sectional pipe inspection with a mobile TV camera and subsequent analysis of video recordings
4Insertion of an auxiliary rope via TV camera
5Mechanical coarse cleaning of the pipe interior using scraper pigs and pull through pigs
6Positioning of the coiled Primus Liner at the start pit and the pulling winch at the destination pit
7Installation of the pulling head, Primus Liner guides and feeder cable
8Insertion of the Primus Line hose (folded or unfolded)
9Assembly of the transition connector fixed to the host pipe
10Running of pressure tests
11Integration of the renewed pipe in the pipeline network and commissioning
12Pit closure

Back

Primus Line® -
the prime solution for pipes

Primus Line® is a flexible sliplining solution for the trenchless rehabilitation of pressure pipes. The system consists of a flexible Kevlar® reinforced liner and specially developed end fittings. Primus Line® is not bonded to the host pipe and is self-supporting. An annulus remains between Primus Line® and the host pipe. Developed by experienced engineers, the system is suitable for different media as well as various application needs and has already proven itself in numerous projects.



Insights into the manufacture of Primus Line® and the installation of the flexible sliplining system are provided in the Primus Line image film.

Applications

Water

Water is a valuable resource as a basis of life, which requires sustainable use and our protection. Primus Line® guarantees a loss-free and secure conveyance of even the most-sensitive media, such as drinking water, contaminated or polluted liquids. Simultaneously, the composite pipe protects the old pipe from the inside against abrasive particles in the water and against corrosion.



View references

Primus Line® is suitable for the transport of the following liquids in the water sector:

  • Drinking water
  • Waste water
  • Industrial water
  • Fire suppression water
  • Service water
  • Warm water
  • Sea water

References

Water

Selected projects, in which Primus Line® as a flexible sliplining system has convincingly proven itself, indicate the versatile areas of application in the water sector.

Lismore City Council (Australia), water main

Rehabilitation and upgrade of a leaking DN 225...

City of Feluy (Belgium), water main

Renovation of a DN 400 for the City of Feluy,...

Putrajaya Holdings (Malaysia), chilled water pipeline

Renewal of a twin DN 500 chilled water pipeline...

ÇEKA Group (Turkey), water main

Rehabilitation of a DN 400 with ÇEKA Group for...

ISZU (Turkey), water main

Renovation of a DN 500 water main for ISZU in...

Mei Carmel (Israel), water main

Renewal of a DN 250 water main with Primeline...

Naval Facilities Engineering Command (USA), water main

Renewal and upgrade of the water infrastructure of...

Italian Civil Defence (Italy) Water main

Triple bypass with Helios for the Italian Civil...

City of Phoenix (USA), water main

Rehabilitation of a DN 300 Asbestos Cement Pipe...

INOVYN (Belgium), fire water main

Rehabilitation of a DN 300 fire water main at an...

Nova Scotia Department of Transportation and Infrastructure Renewal (Canada)





Renovation of a ductile iron water main DN 350...

Applications

Gas

Gaseous media represent a special challenge to trenchless pipe rehabilitation. However, an inner layer made of permeation-reducing plastics and the seamless production of up to 4,500 metres of the Primus Liner have made it possible for gas pipelines to also be renovated with Primus Line®. A monitoring pipe with a fitted valve which is affixed to the old pipeline allows the system-specific annular space to be monitored after the renovation work.



View references

Primus Line® is suitable for the transport of the following gases:

  • Natural gas
  • Sweet gas
  • Sour gas
  • Mixed gas
  • Coke oven gas

References

Gas

Selected projects, in which Primus Line® as a flexible sliplining system has convincingly proven itself, indicate the versatile areas of application in the gas sector.

OAO Tomskrtransgaz/OAO Gazprom (Russia), gas siphon pipeline



Renewal of a siphon pipeline of the OAO...

Erdgas Zürich AG (Switzerland), high-pressure gas pipeline



High-pressure gas pipeline of the Erdgas Zürich...

Krapotkino Public Utilities (Russia), gas pipeline



Gas pipeline for Krapotkino Public Utilities,...

Jakutsk Public Utilities (Russia) Gas pipeline

Gas pipeline for Jakutsk Public Utilities, Russia

...

Applications

Oil

The oil industry is facing new challenges as a result of damage to steel pipelines caused by internal corrosion. Possible leakages can cause significant environmental damage; they also mean increased costs or even loss of reputation for network operators. Primus Line® is suitable for the renovation of oil pipelines due to the medium-specific inner layer, and acts as a corrosion barrier between the transported fluid and the host pipe.



View references

Primus Line® is suitable for the transport of the following oils:

  • Crude oil
  • Refined oils
  • Fuel oil
  • Oil slag

References

Oil

Selected projects, in which Primus Line® as a flexible sliplining system has convincingly proved itself, indicate the versatile areas of application in the oil sector.

PEMEX - Petroleos Mexicanos (Mexico), transportation pipeline



Petroleos Mexicanos (PEMEX) crude oil pipeline...

Applications

Customised Products

The fields of application of Primus Line® are very diverse and will not be exhausted any time soon. Our own development team therefore works constantly in further developing the flexible relining system and creating customer-specific solutions. In close exchange with the customer, individual products are produced for special requirements.



View references

References

Water

Selected projects, in which Primus Line® as a flexible sliplining system has convincingly proven itself, indicate the versatile areas of application in the water sector.

Lismore City Council (Australia), water main

Rehabilitation and upgrade of a leaking DN 225...

City of Feluy (Belgium), water main

Renovation of a DN 400 for the City of Feluy,...

Putrajaya Holdings (Malaysia), chilled water pipeline

Renewal of a twin DN 500 chilled water pipeline...

ÇEKA Group (Turkey), water main

Rehabilitation of a DN 400 with ÇEKA Group for...

ISZU (Turkey), water main

Renovation of a DN 500 water main for ISZU in...

Mei Carmel (Israel), water main

Renewal of a DN 250 water main with Primeline...

Naval Facilities Engineering Command (USA), water main

Renewal and upgrade of the water infrastructure of...

Italian Civil Defence (Italy) Water main

Triple bypass with Helios for the Italian Civil...

City of Phoenix (USA), water main

Rehabilitation of a DN 300 Asbestos Cement Pipe...

INOVYN (Belgium), fire water main

Rehabilitation of a DN 300 fire water main at an...

Nova Scotia Department of Transportation and Infrastructure Renewal (Canada)





Renovation of a ductile iron water main DN 350...

Highest quality and security standards

From production conditions through to the finished product

The production works of Primus Line® was designed especially for the production of Kevlar reinforced pipe. Both from a production-technical standpoint and with regard to the product quality, Primus Line® is produced under optimum conditions.

The company itself imposes conditions which involve a significant exceeding of standards as an objective, which is also reflected in the quality as well as the environmental and occupational safety policy.

Product specific certificates

As a particularly reliable and secure system, Primus Line® also satisfies the most demanding specifications relating to hygiene and is therefore even suitable for the renewal of drinking water pipelines, which is associated with high requirements. Primus Line® already possesses corresponding certifications in the following countries:



  • USA
  • Germany
  • Russia
  • Belarus
  • Ukraine
  • Lithuania
  • Poland
  • Austria
  • Norway
  • Canada
  • Australia
  • Israel



Additionally Primus Line is certified in accordance with SCCP and meets the highest standards in security, health and environmental protection systems of the chemical and petrochemical industry.

Regular quality controls

In bi-annual inspection tests, an external test lab strictly monitors adherence to the directives of the VP 643, which are prerequisites for obtaining the DVGW-type approval certificate.

To guarantee a high quality product, the following quality controls are to be carried out during and after the production process:

  • Computer-aided recording of process parameters, alarms and control mechanisms using cameras and sensors
  • Continuous monitoring of the individual layers or fabric layers of Primus Line® in terms of wall thickness and condition
  • Batch-specific burst resistance testing after production
  • Incoming goods inspection
  • Proper storage
  • Regular monitoring of test equipment and the mandatory operating equipment for testing

An inspection certificate is issued to each customer as evidence of the highest level of product quality and to document the results of quality testing

Product specific certificates

As a particularly reliable and secure system, Primus Line® also satisfies the most demanding specifications relating to hygiene and is therefore even suitable for the renewal of drinking water pipelines, which is associated with high requirements. Primus Line® already possesses corresponding certifications in the following countries:



  • USA
  • Germany
  • Russia
  • Belarus
  • Ukraine
  • Lithuania
  • Poland











Maximum sustainability

Primus Line® uses the existing infrastructure, protects nature and the environment as a result of the minimal impact and requires only a low level of machine deployment. Sustainable and ecology-minded thinking was decisive in the development of the trenchless technology, and to this day it has been a feature of its business principles, (possibly: the company fulfills the Quality Assurance Standard ISO 9001, the Environmental Management Standard DIN EN ISO 14001 and the Occupational Safety Directive OHSAS 18001.)





Company

Manufacturer of a unique system for trenchless pipe rehabilitation

One idea was the spark which stimulated the successful development of Primus Line® - the unique system for the no dig rehabilitation of pressure lines. After intensive development work, Rädlinger primus line GmbH was founded in 2001 as a part of the powerful Rädlinger Group. Since then, the global network of  installation partners and the flexible relining system have grown with its application in a great number of projects around the world. Today the manufacturer of the trenchless technology, with headquarters in Germany and a subsidiary in the USA, has numerous employees active in the areas of technology and development, production and international sales.


Drinking water pipeline in Moscow renewed with Primus Line® low-pressure system

In autumn 2014, a cast iron DN 300 pipeline became damaged in the centre of Moscow. In the course of the rehabilitation of the damaged pipeline...

Optimised corrosion protection now available for all drinking water connectors

The Primus Line® medium pressure connector with flange has been redesigned. This design has already become the standard for LP connectors for some...

Primus Liner overcomes gradients in Australian Lismore

With the Australian certification according to AS/NZS 4020:2005, Primus Line® fulfils one of the most demanding drinking water standards worldwide. In...

News

Latest information on Primus Line® and current projects give a more precise insight into the company Primus Line.

Newsletter

You can find regular sector news and information on new and further developments, exciting projects and other company activities with the Primus Line newsletter.

Primus Liner overcomes gradients in Australian Lismore

With the Australian certification according to...

Optimised corrosion protection now available for all drinking water connectors
2016 Primus Line Conference

“It’s not about us … It’s about you!” – It was...

Market presence in North America continues to grow

The positive development of Primus Line® on the...

Promising prospects in Australia

The years from 1995 to approximately 2010 were...

Breakthrough in Turkey

Turkey is a promising market for trenchless pipe...

Water emergency in Messina

Since a week ago on Saturday, the Sicilian port of...

Pipeline along a bridge renewed with Primus Line®

The traffic situation in Istanbul is particularly...

Partner Çeka Grup visits the factory and company headquarters

At the start of May, the managing directors of the...

Drinking water pipeline in Moscow renewed with Primus Line® low-pressure system

Events

Trade fairs & events

Primus Line organises regular customer events and is represented at numerous trade exhibitions around the world. Prospective customers can get informed locally about the functioning and the possible applications of Primus Line® or form personal contacts.

H2O (Italy), 19.10. - 21.10.2016
  • trade fair:
    H2O
  • date:
    19.10. - 21.10.2016
  • place:
    Bo...
AFC 2016 (USA), 24.10.16-27.10.2016
  • trade fair:
    AFC 2016
  • date:
    24.10.16-27.10.2016
  • pla...
IMESA 2016 (South Africa), 26.10.16-28.10.2016
  • trade fair:
    IMESA 2016
  • date:
    26.10.16-28.10.2016
  • p...
IFAT EURASIA (Turkey), 16.02.17-18.02.17
  • trade fair:
    IFAT EURASIA
  • date:
    16.02.17-18.02.17
  • p...
Wasser Berlin (Germany), 28.03.17-31.03.17
  • trade fair:
    Wasser Berlin
  • date:
    28.03.17-31.03.17
  • ...
Suisse Public (Suisse), 13.06.17-16.06.17
  • trade fair:
    Suisse Public
  • date:
    13.06.17-16.06.17
  • ...

Press

Do you need press information, technical details and images related to our products or to our company? We would be happy to assist you with your journalistic research.

Please send press inquiries to

Press & Public Relations
Stephanie Zapf
Phone +49 9971 4003-100
Fax +49 9971 4003-123
presse@remove-this.raedlinger.com

Primus Line Award 2016 goes to Helios

As part of the 2016 Primus Line Conference, the...

Media Center

Downloads

Here you can find brochures and flyers, technical data and deployment reports for downloading.

Brochures

Primus Line ® Brochure pdf Download ( 3 MB )
Flyer Water pdf Download ( 924 KB )
Flyer Gas pdf Download ( 881 KB )
Flyer Oil pdf Download ( 1 MB )
Primus Line® Brochure (italian) pdf Download ( 3 MB )
Primus Line® Brochure (japanese) pdf Download ( 4 MB )
Primus Line® Brochure (polish) pdf Download ( 3 MB )
Primus Line® Brochure (portugese) pdf Download ( 3 MB )
Flyer Water (french) pdf Download ( 714 KB )
Flyer Water (canadian) pdf Download ( 672 KB )

Projects

Project Lesbos, Greece (Water) pdf Download ( 101 KB )
Project Lake Windermere, UK (Water) pdf Download ( 365 KB )
Project Lismore City, Australia (Water) pdf Download ( 274 KB )
Project Inovyn, Belgium (Water) pdf Download ( 103 KB )
Project Feluy, Belgium (Water) pdf Download ( 138 KB )
Project Lockeport, Canada (Water) pdf Download ( 379 KB )
Project Haifa, Israel (Water) pdf Download ( 168 KB )
Project Dikili, Turkey (Water) pdf Download ( 101 KB )
Project Brandenburg, Germany (Water) pdf Download ( 256 KB )
Project Geneva, Switzerland (Water) pdf Download ( 382 KB )
Project Gijon, Spain (Water) pdf Download ( 192 KB )
Project Koblenz, Germany (Water) pdf Download ( 244 KB )
Project Kornwestheim, Germany (Water) pdf Download ( 274 KB )
Project Nittenau, Germany (Water) pdf Download ( 214 KB )
Project Oberense, Germany (Water) pdf Download ( 183 KB )
Project Poltringen, Germany (Water) pdf Download ( 174 KB )
Project Soto de Agues, Spain (Water) pdf Download ( 245 KB )
Project Telfs, Austria (Water) pdf Download ( 270 KB )
Project Waldenbuch, Germany (Water) pdf Download ( 292 KB )
Project Wales, UK (Water) pdf Download ( 297 KB )
Project Brussels, Beglium (Water) pdf Download ( 150 KB )
Project Burgdorf, Switzerland (Water) pdf Download ( 202 KB )
Project Ekaterinburg, Russia (Water) pdf Download ( 128 KB )
Project Grünwald, Germany (Water) pdf Download ( 154 KB )
Project Istanbul, Turkey (Water) pdf Download ( 170 KB )
Project Putrajaya, Malaysia (Water) pdf Download ( 119 KB )
Project Sorum, Norway (Water) pdf Download ( 143 KB )
Project Ojo de Agua, Argentina (Water) pdf Download ( 97 KB )
Project Olpe, Germany (Water) pdf Download ( 152 KB )
Project Lake Balaton, Hungary (Water) pdf Download ( 164 KB )
Project Tauschwitz, Germany (Water) pdf Download ( 154 KB )
Project Vologda, Russia (Water) pdf Download ( 169 KB )
Project Wien-Schwechat, Austria (Water) pdf Download ( 182 KB )
Project Messina, Italy (Water) pdf Download ( 508 KB )
Project Krakow, Poland (Gas) pdf Download ( 165 KB )
Project Bernburg, Germany (Gas) pdf Download ( 223 KB )
Project Basel, Switzerland (Gas) pdf Download ( 343 KB )
Project Bad Gandersheim, Germany (Gas) pdf Download ( 139 KB )
Project Hamm, Germany (Gas) pdf Download ( 185 KB )
Project Kolpaschevo, Russia (Gas) pdf Download ( 112 KB )
Project Zurzach, Austria (Gas) pdf Download ( 208 KB )
Projects Palermo, Italy (Oil) pdf Download ( 287 KB )
Project Meppen, Germany (Oil) pdf Download ( 173 KB )
Project Poza Rica, Mexico (Oil) pdf Download ( 182 KB )
Project Calabria, Italy (Water) (Italian) pdf Download ( 256 KB )
Project Lago di Como, Italy (Water) (Italian) pdf Download ( 210 KB )
Project Orbetello, Italy (Water) (Italian) pdf Download ( 155 KB )
Project San Valentino, Italy (Water) (Italian) pdf Download ( 225 KB )
Project Trento, Italy (Water) (Italian) pdf Download ( 151 KB )
Project Venice, Italy (Water) (Italian) pdf Download ( 173 KB )
Project Candela, Italy (Gas) (Italian) pdf Download ( 172 KB )

Other

Contact

Rädlinger primus line GmbH

Do you have any questions, or would you like to know more about us or arrange an appointment?
Please send a message or give us a call!

Rädlinger primus line GmbH
Kammerdorfer Straße 16
93413 Cham, Germany

Phone +49 9971 4003-100
Fax +49 9971 4003-123

primusline@remove-this.raedlinger.com
www.primusline.com

Social Media

Contactform

Contact Form

contact
